Understanding MX Records for Email

DNS Management Updated May 2026

MX (Mail Exchanger) records specify which mail servers handle email for your domain. Without correct MX records, you cannot receive email.

How MX Records Work

Someone sends email to [email protected]
Sender's mail server looks up MX records for example.com
MX record says: "Send mail to mail.example.com with priority 10"
Sender delivers email to that mail server

MX Record Structure

example.com.    MX    10    mail.example.com.

example.com: The domain
MX: Record type
10: Priority (lower = higher priority)
mail.example.com: Mail server hostname

MX Priority

Multiple MX records with different priorities provide backup:

example.com.    MX    10    mail.example.com.
example.com.    MX    20    backup.example.com.

Priority 10 is tried first (primary)
If unavailable, priority 20 is used (backup)
Lower number = higher priority

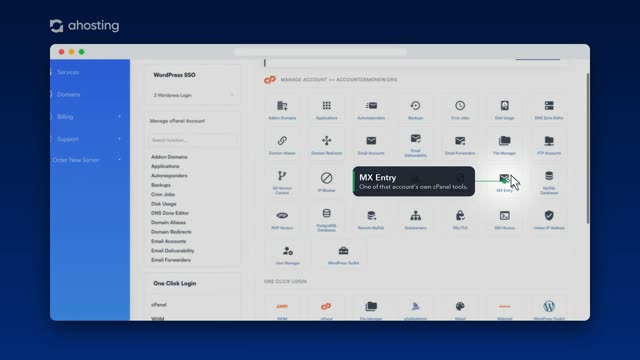

Adding MX Records in cPanel

Go to Zone Editor
Click Manage for your domain
Click + MX Record
Enter:
- Priority: Number (e.g., 10)
- Destination: Mail server hostname
- TTL: Time to live
Click Add Record

Ahosting Default MX Record

For email hosted with Ahosting:

Priority: 0
Destination: mail.yourdomain.com

Common Third-Party MX Records

Google Workspace

1    ASPMX.L.GOOGLE.COM
5    ALT1.ASPMX.L.GOOGLE.COM
5    ALT2.ASPMX.L.GOOGLE.COM
10   ALT3.ASPMX.L.GOOGLE.COM
10   ALT4.ASPMX.L.GOOGLE.COM

Microsoft 365

0    yourdomain-com.mail.protection.outlook.com

Zoho Mail

10   mx.zoho.com
20   mx2.zoho.com
50   mx3.zoho.com

Email Routing in cPanel

When using external email (Google, Microsoft):

Go to Email > Email Routing
Select your domain
Choose Remote Mail Exchanger
Click Change

This tells cPanel not to handle email locally.

MX Record Requirements

MX target must be a hostname, not an IP address
The hostname must have an A record
Cannot use CNAME as MX target
MX records are always for the root domain (not subdomains)

Troubleshooting MX Records

Not receiving email

Check MX records are correct
Verify mail server hostname has A record
Check email routing in cPanel
Wait for DNS propagation

Check MX records

nslookup -type=MX example.com
dig example.com MX

Online tools
